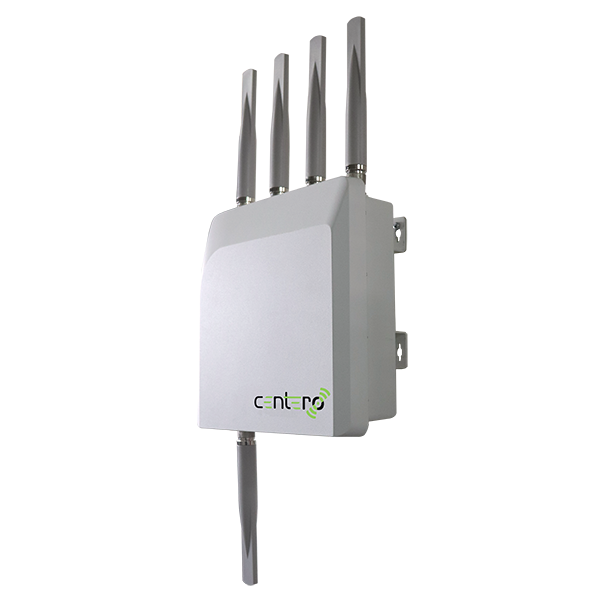

INTREPID WirelessHART® Field Gateway

• WirelessHART compliant Network/Security Manager, Gateway and Access Point
• Includes both WirelessHART and WiFi MESH+ high throughput backbone connectivity
• Hosts intuitive INTREPID application modeled after field device lifecycle
• Extended WirelessHART connectivity range to field instruments – up to 1.2 miles (2,000 meters) LOS

Deploy and manage WirelessHART and WiFi Mesh+ Networks

Centero’s INTREPID Field Gateway is a WirelessHART (IEC 62591) compliant wireless process automation infrastructure device that manages WirelessHART mesh field instrument networks and also includes industrial Wi-Fi Mesh+ backbone connectivity. It is a rugged Field Gateway, certified for deployment in hazardous areas that meets rigorous wireless process automation requirements for mission critical applications. Deploy highly scalable networks that cover large geographic areas due to the market leading wireless range of the WirelessHART and Wi-Fi MESH+ communications. Support for sub-second process value reporting allows for deployment of field instruments engaged in both monitoring and control. Monitor, configure and manage field instruments via an intuitive web-based application.

The integration of both WirelessHART and Wi-Fi MESH+ technologies allow for the deployment of fully redundant mesh field and backbone infrastructure networks. All software and firmware components are remotely upgradeable through a secure, AES-256 encrypted and authenticated process.
